Popis

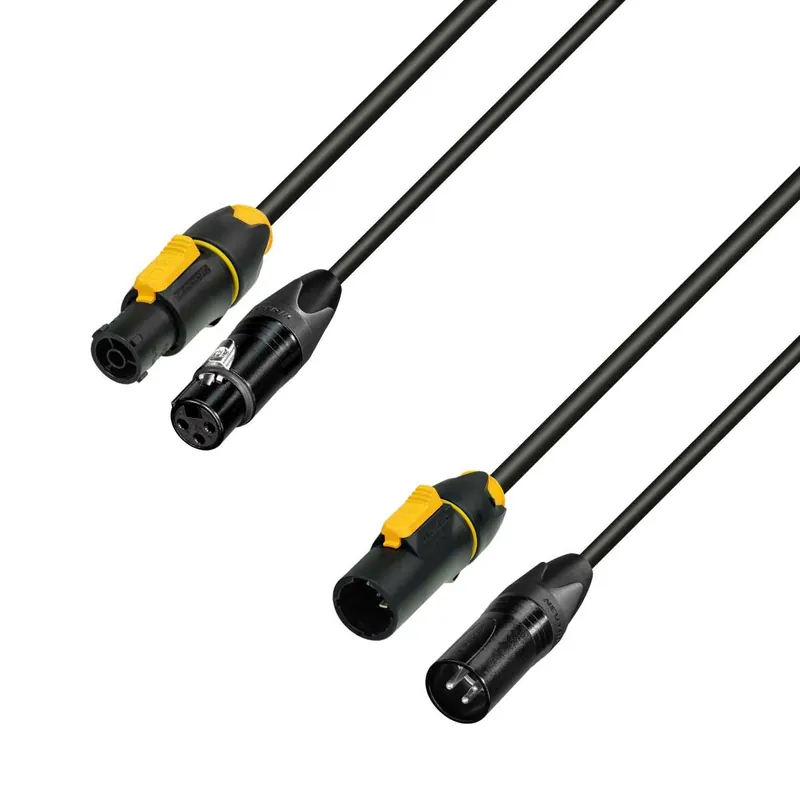

| Product type | Pre-assembled Cables |
| Type | Power / Signal Cable |
| Length | 1.5 m |
| Splice length | 40 cm |
| Colour | Black |
| Overall diameter | 15 mm |
| Jacket material | PVC |
| Connector 1-A | NAC3FX-W |
| Connector 1-B | NC3FXX-BAG |
| Connector 2-A | NAC3MX-W |
| Connector 2-B | NC3MXX-BAG |
| Assembly mains cable | 3 x 1.5 mm2 |
| AWG | 24 |
| Cross-section | 0.22 mm2 |
| Assembly signal conductor | 2 x 0,22 mm2 |
| Isolation | PE 1.7 mm |
| Inner conductor construction | 7 x 0.20 mm, bare copper |
| Number of internal conductors | 2 |
| Conductor resistance | 85 ohm/km |
| Current carrying capacity | 55 pF/m |
| Surge Impedance | 120 ohm/km |
| Operating Temperature | -20 – 70 °C |
| Shield | PE filler, tinned copper braided shielding with 96 x 0.10 mm + AL |
| Weight | 0,43 kg |
Výroba :CZ
