Popis

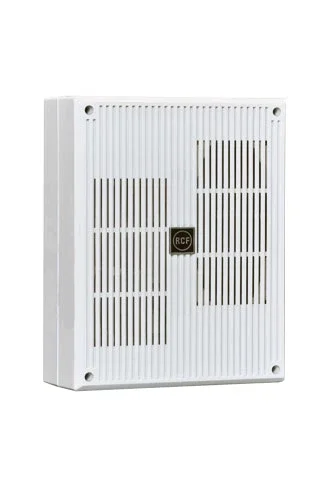

• The CSB/1T-N speaker is designed for wall installation. It incorporates two opposing elliptical loudspeakers that enable bidirectional acoustic output, ideal for sound systems in long corridors.
• The built-in line transformer makes it possible to connect the CSB/1T-N to constant voltage audio lines at 50V or 100V, with the possibility to select the output power.
Features:
• Bidirectional output.
• Two opposing extended range elliptical loudspeakers
• Line transformer for constant voltage sound systems
• Body in white plastic
• Bracket for wall installation
• Possibility to select the output power from several values
• Quick and easy installation
Acoustical Specifications:
• Type of speaker: Bidirectional wall and ceiling speaker with transformer
• Frequency Response: 120 Hz ÷ 10 kHz
• Max SPL @ 1m: 101 dB
• Horizontal coverage angle: 80°
• Vertical coverage angle: 110°
• Power Handling: 6 W RMS
• Peak Power Handling: 12 W PEAK
• System Sensitivity: 90 dB
• Impedance: 8 ohm
Transducers:
• Speaker: 2 x 6″
Input Section:
• Input connector: 2 conductor cable
• Constant voltage: 100 V , 50 V V
• Power Selection: 6 – 3 – 1.5 – 0.75 W (100 V)
Cabinet:
• Hardware: Plastic material
• Colour: White
Physical Specifications:
• Height: 234 / 9.21 mm/inch
• Width: 240 / 9.44 mm/inch
• Depth: 184 / 7.24 mm/inch
• Net weight: 1.24 / 2.73 kg/lbs
Shipping information:
• Package height: 190 / 7.48 mm/inch
• Package width: 265 / 10.43 mm/inch
• Package depth: 130 / 5.11 mm/inch
• Shipping weight: 1.54 / 3.39 kg/lbs
